- Piston diameter: 22mm
- Position: front
- Spring series: 08790-xx (order separately)
- Recommended oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx SAE 7.5W)
- Oil level mm: 140
- Packaging unit: pair
- ABE approved unless mentioned otherwise
Note: Will not fit models with a 21" wheel.
Note: Springs are not included and must be ordered separately. Please follow Öhlins recommendations regarding spring rates and oil in relation to rider's weight and preference as listed.

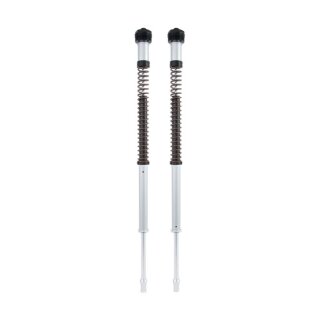

Description: The Öhlins NIX 22 cartridge kit comes with 22mm pistons, which makes it compatible with motorcycles that are equipped with conventional (non-upside down) front forks. The proven 'NIX' design is derived from the technology that helpt provide championships on the highest level and each NIX 22 cartridge kit is made to fit the specific bike series to meet the requirements and characteristics of that bike. It features compression damping in the left leg and rebound damping in the right leg, allowing more precision, stability and feedback for improved rider confidence. All adjustments, including spring preload, are made at the top cap. It is a bolt-in installation into the original front fork, but springs must be ordered separately the match the rider's weight and preferences for the perfect set-up.
Fits: > 17-22 Road Glide Custom CVO FLTRXSE (FL3); 17-22 Road Glide Special FLTRXS (FL3); 2022 Road Glide ST FLTRXST (FL3) (ABE in preparation); 17-22 Road Glide Ultra CVO FLTRUSE (FL3); 17-22 Road Glide Ultra FLTRU (FL3); 17-22 Street Glide CVO FLHXSE (FL3); 17-22 Street Glide FLHX(S) (FL3); 2022 Street Glide ST FLHXST (FL3) (ABE in preparation).
(Will not fit models with 21" front wheels)
