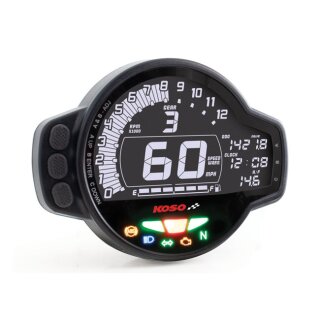

Black. Plastic. 12V DC. ABE approved 'multimeter' instrument. Comes with speedo / tachometer, odometer, 2 tripmeters, 3 shift light settings, adjustable overspeed warning light, gear indicator, engine oil / water thermometer and cylinder head temperature settings with adjustable temperature warning, fuel gauge with warning light, clock, 8-18V volt meter with adjustable low voltage warning, air to fuel ratio 1.1 to 17.5, ABS on / off, workshop interval settings. Display has 5 backlight brightness levels. JIS D 0203(S2) rain test approved. Dimensions: 128mm wide x 98mm high x 48.8mm deep. - Weight approx. 200 gram - ABE approved - 12V DC - Speedometer: 0-199 km/h (0-124 mph) switchable - Displays: Per 1 kmh (mph) - Odometer display range: 0-99.999 km (miles). resets to 0 when exeeded - Odometer displays: Per 1 km (mile) - Trip meter A – B: 0–9.999.9 km (miles). resets to 0 when exceeded - Tripmeter displays: Per 0.1 km (mile) - Overspeed warning light: Sets from 30 to 199kmh (19-124 mph) - Tire Circumference setting: 300–2.500mm. adjustable per mm - Speed sensor sampling points: 1–40 points - Gear indicator: OFF. top gear. N and top gear. show all (N/1-6) - Workshop interval settings: 500–16.000 km (300–10.000 miles). can be set per 100km (mile) - Tachometer: 0-10.000 rpm / 0-13.000 rpm (per 250 rpm) - RPM - input pulse: POSI / NEGA - RPM signal setting range: P-0.5 / P-1 / P-1.5 / P2 / P2.5 / P3 / P4 / P5 / P6 / P9 / P10 / P11 / P12 /P17 / P18 / P23 / P24 / P34 / P36 - Value 1 shift light: Display reading: 0-10.000 RPM. Setting range: 3.000-9.750 RPM. Display reading: 0-13.000 RPM. Setting range: 3.000-12.750 RPM. Shift light lights up (green) when the set value is exceeded - Value 2 shift light: Display reading: 0-10.000 RPM. Setting range: 3.000 – 9.750 RPM. Display reading: 0 – 13.000 RPM. Setting range: 3.000 – 12.750 RPM. Warning light lights up (red) when the set value is exceeded - Value 3 shift light: Display reads: 0-10.000 RPM. Setting range: 3.250 – 10.000 RPM. Display reading: 0-13.000 RPM. Unit of adjustment: 3.250 – 13.000 RPM. Shift light flashes (green+red) when the set value (including the value) is exceeded - Shift light settings per: 100 RPM - Indicator lights: ABS (yellow), high beam (blue), turn signal (green), engine light (yellow), neutral (green), warning light (red) - Temperature & Maximum temperature - Display 1: Off - Display 2: Cylinder head temperature: P1 -20 – 200°C (-4 – 392°F), P2 -40 to 185°C (-40 to 365°F), P3 -20 to 220 °C (-4 to 428°F), P4 -20 to 200°F (-4 to 392°F), P5 -20 to 120°C (-4 to 248°F), P6 -30 to 200°C (-22 to 392°F), P1A -20 to 200°C (-4 to 392°F), P2A -40 to 185°C (-40 to 365°F), P5A -20 to 120°C (-4 to 248°F), P6A -30 to 200°C (-22 to 392°F) - Display 3. Temperature sensor: P-250 0 to 250°C (32 to 482°F) - Engine thermometer: 50 -180°C (122 - 356°F) - Temperature warning: Sets per 5°C (3°F), with warning light - Fuel Gauge setting range: Off / 100 ohms / 250 ohms / 270 ohms / 390 ohms / 510 ohms / 1200 ohms / fuel switch / User - Fuel reserve indicator: Setting range: 0-3 bar - Warning light lights up when the set value (including the value) is undershot. Setting unit: 1 bar - Clock: 1:00 – 12:59 (12h) - Volt meter: 8.0 – 18.0 V, dispays per 0.1V - Low voltage warning light set range: 8.0V - 13.0V, sets per 0.1V. - Backlight brightness: 1-5 levels (dark to light), each level is 20% - ABS setting range: On / Off - Air to fuel ratio set range: On / Off - Air to fuel ratio: Displays 12.1 – 17.5, per 0.1 - Temperature range: -10 - 60 °C (14 - 140 °F) - JIS D 0203(S2) rain test approved - Dimensions: 128mm wide x 98mm high x 48.8mm deep - Weight approx. 200 gram - ABE approved - Complete with installation hardware kit, brackets and instructions
