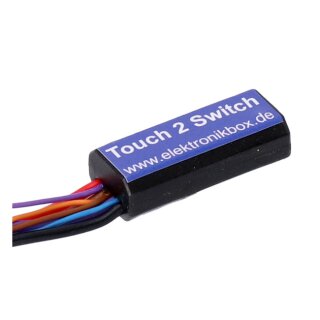

Perfect to switch the headlamp between high-low beam, lights on-off, ignition on-off or something else. The Touch 2 Switch is a 2 channel power relay that is controlled by 2 push buttons, no matter if they are wired to plus or minus. The outputs can handle 70 Watt peak and 50 Watt continous load. The module fits inside almost every handlebar due to its small size. - 2 channel relay - Pushbutton controlled on-off switching - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 6 - 18 Volt - Connections: Inputs 0.14 mm², Outputs 0.75 qmm - Maximum current: 7 Ampere / 70 Watt per output - Maximum ambient temperature: 80 degree Celsius
